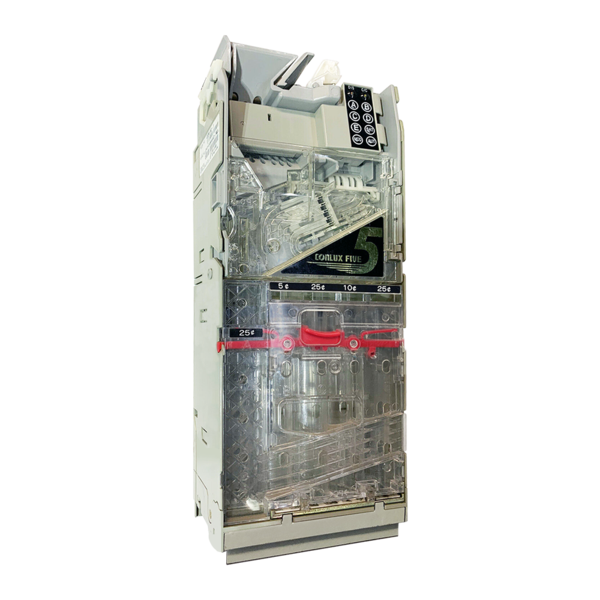

CCM5G Series Coin Changer
Details
Five-Tube Cassette
Greater capacity eliminates change starvation. Sell more product and avoid costly service calls.
Auto Cassette Programming
Cassettes snap into place and coin configurations are automatically recognized by the changer. No programming needed by service technician, no possibility of error. Optimize sales by interchanging cassettes according to vend price.
3-Coin Payout System
Simultaneous payout of three coins speeds transactions and increases throughput in high-volume locations.
Smart Payout
Unit makes multiple attempts to pay out coins if necessary, virtually ensuring transaction; results in fewer service calls.
Anti-Salting Channel
Unique diversion path protects changer and vendor from salt water vandalism and damage.
Memory Back-Up
Non-volatile memory ensures that changer will retain its settings and transaction history in case of a power failure.
No Tools Required
Designed for easy assembly/disassembly and maintenance, even at vend site.
Swing-Open Payout Base
Swing-open cassette base makes for easy collection and change replenishment. No tools required. Expedites cleaning and removal of foreign material.
Last Coin Payout
No dead inventory.
Warranty
Limited 2 year warranty.
CCM5G Specifications
Interface | Multi-Drop-Bus (M.D.B.) |
Operating Voltage | +34VDC |
Power Consumption | Standby 0.10A |
Operating State | Motor Operation 0.66A Peak Max. 5 sec 0.92A |
Operating Temperature Range | 50F (-15°C) to 140°F (+60°C)
|
Insulation Resistance | 20M Ohm or more
|
Weight | 4.2 Lbs. (1.9 Kg) |
Dimensions | HxWxD: 14.83"H x 5.43"W x 3.23"D (376mm x 147mm x 82mm) |
Number of Motors | 1 Motor - 15VDC |
Number of Solenoids | 5 for Coin Selection - 15VDC
|
Coin Acceptance | US: 5¢, 10¢, 25¢, $1 CAN: 5¢, 10¢, 25¢, $1, $2 Switch Selectable for US only, Canadian only, or both |
Cassette Tube | US - 1 Cassette: 1N, 1D, 3Q PN 5030004030 US - 2 Cassette: 2N, 2D, 1Q PN 5030004040 US - 4 Cassette: 1N, 1D, 2Q,$1 PN 5030004050 US - 5 Cassette: 2N, 3D PN 5030004060 |
